Mitsubishi E1071 HMI for sale
Description : HMI
Make : Mitsubishi
Type : E1071
Condition : Used – Tested

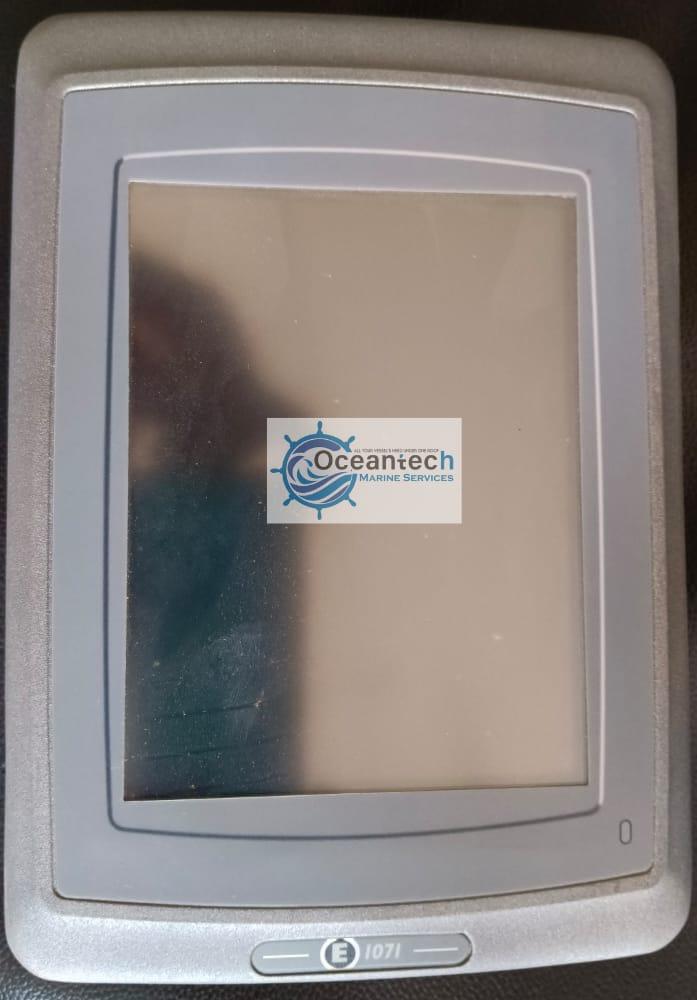

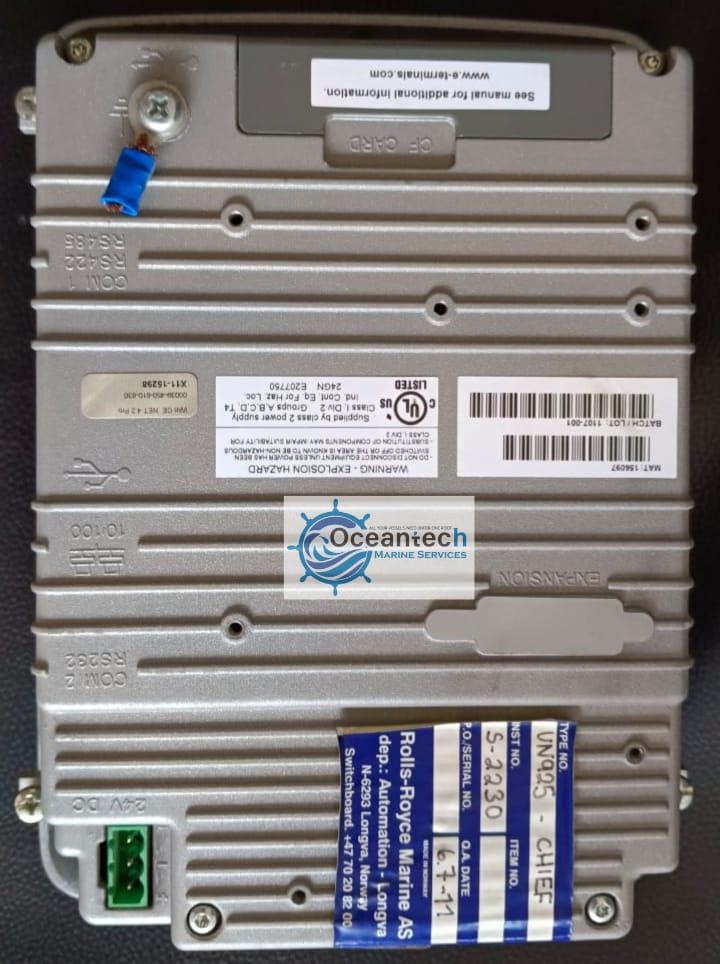

Photos : Attached here with
PRICE ON
REQUEST
E1071
6.5'' graphic touch HMI
- 640 x 480 pixels
- TFT display
- 6.5" TFT-LCD touch screen
- Project storage 12 MB
- Operating temperature 0 to +50 °C
- Ethernet and serial
- Touch display
General description
Life cycle status
|
Limited
|
|
|
Mechanical
Mechanical size
|
219 x 154
x 61 mm
|
Number of touches
|
1 million finger touch operations
|
Touch type
|
Resistive
type
|
Cut-out size
|
189 x 138 mm
|
Weight
|
1.2 kg
|
Housing material
|
Powder-coated aluminium, grey
|
Power
Input voltage
|
20 - 30 V
DC
|
Power consumption (max)
|
9,6 W
|
Input fuse
|
Internal
DC fuse, 3.15 AT
|
Display
Size diagonal
|
6.5 inch
|
Resolution
|
640 x 480 pixels
|
Backlight
|
CCFL with
dimming
|
Backlight life time
|
50,000 hrs
|
Backlight brightness
|
350 cd/m2
|
Display type
|
TFT CCFL
|
Serial communication
Number of serial ports
|
1 Port
9pin DSUB/1 Port 25 pin DSUB
|
Serial port 1
|
RS 232 (RTS/CTS)
|
Serial port 2
|
RS422
(RTS)/RS485
|
Ethernet communication
Number of Ethernet ports
|
1
|
Ethernet port 1
|
1x10/100 Base-T (shielded RJ45)
|
